- ThermTec
- Compact Thermal Viewer
- Thermal resolution 384×288 VOx
- LRF laser distance meter
- NETD ≤20mK
- Pixel size 12µm
- Lens 20/60mm
- 1.8/5.5X magnification
- Palette 6 colours
- Internal memory 64GB
- 4X digital zoom
- IA distance calculation
- AMOLED 1024 50HZ display
- Image capture and video recording
- Recoil force up to 6000J
- 7 reticles
- 5 Zeroing profiles
- WiFi
- APP Smartphone
- Built-in battery up to 16 h battery life
- Magnetic type USB connector
- IP67 protection
- PIP image
- Automatic recording RAV shooting

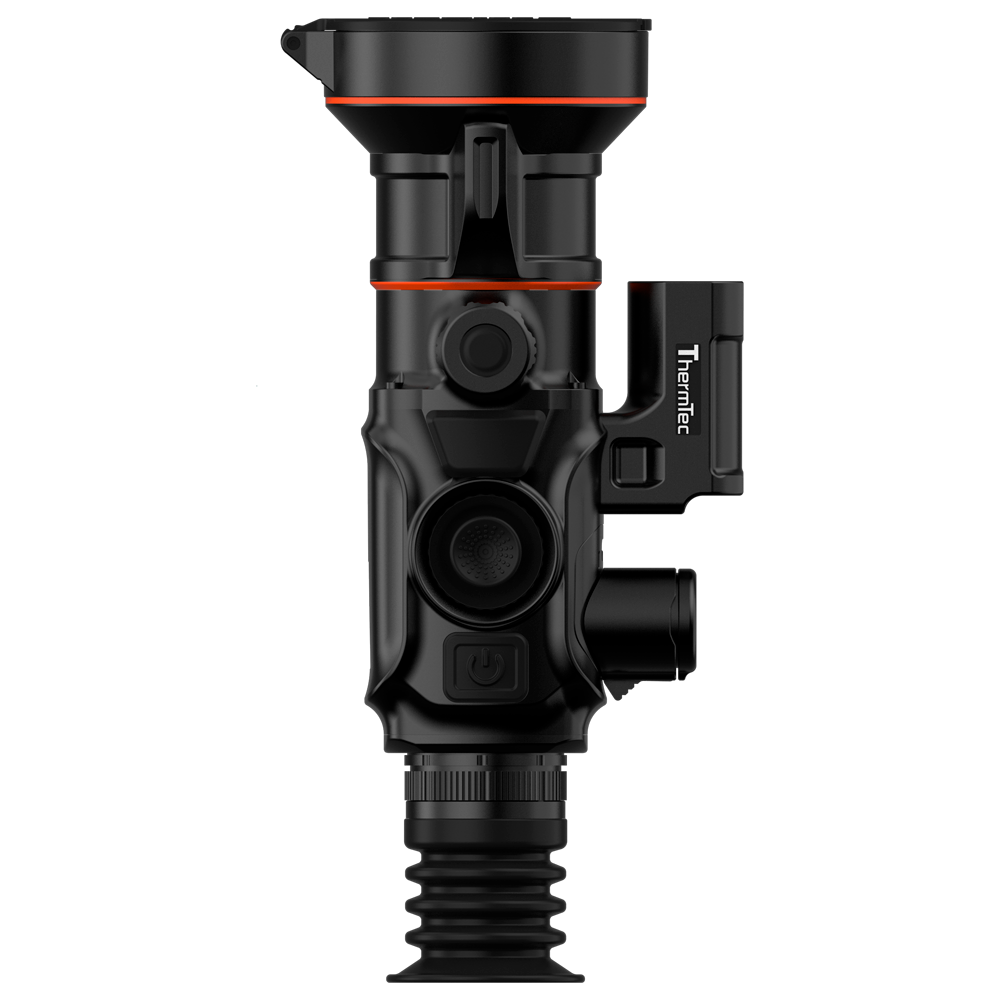

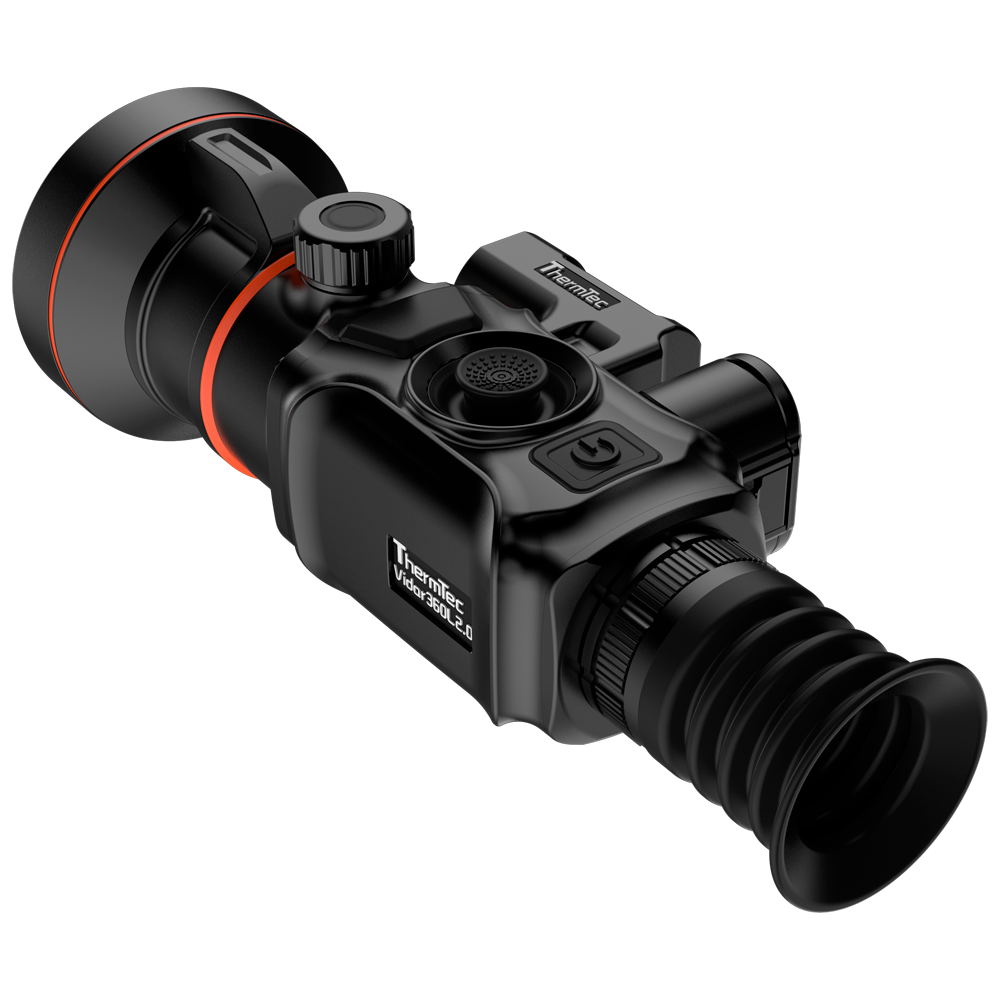

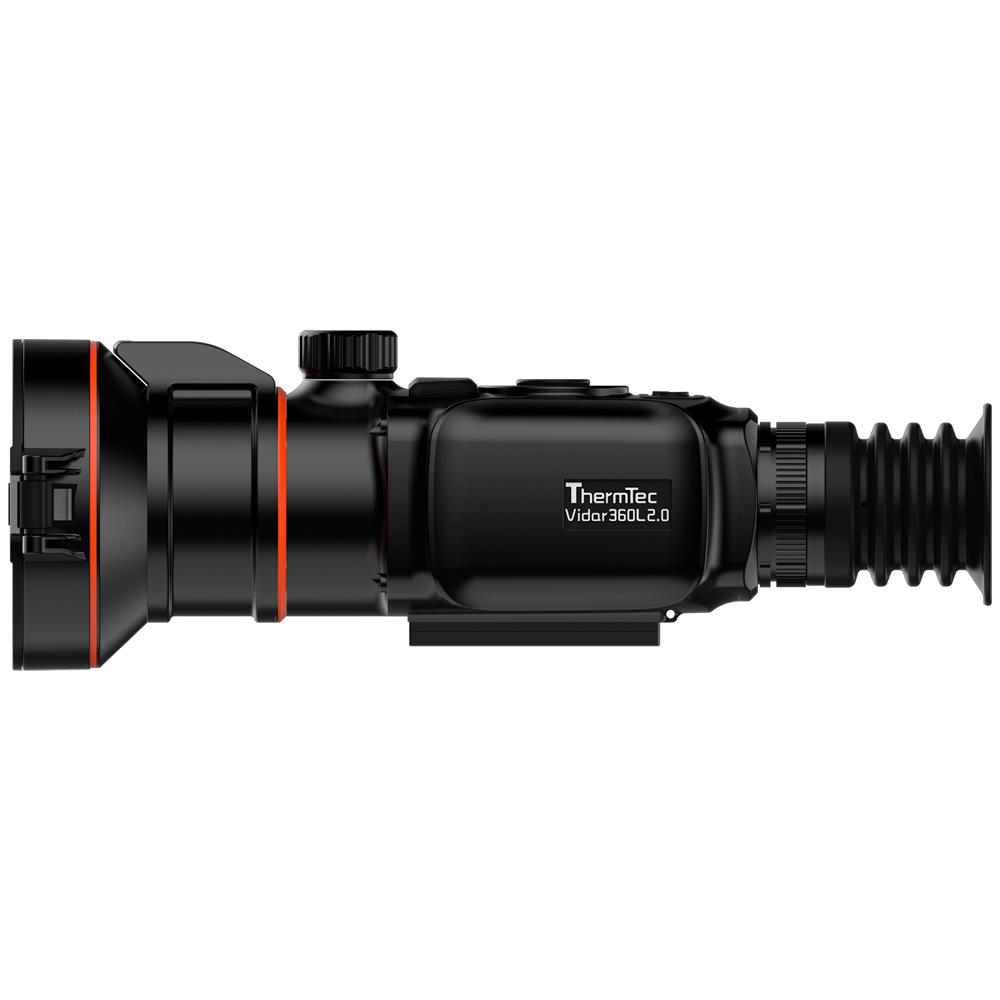

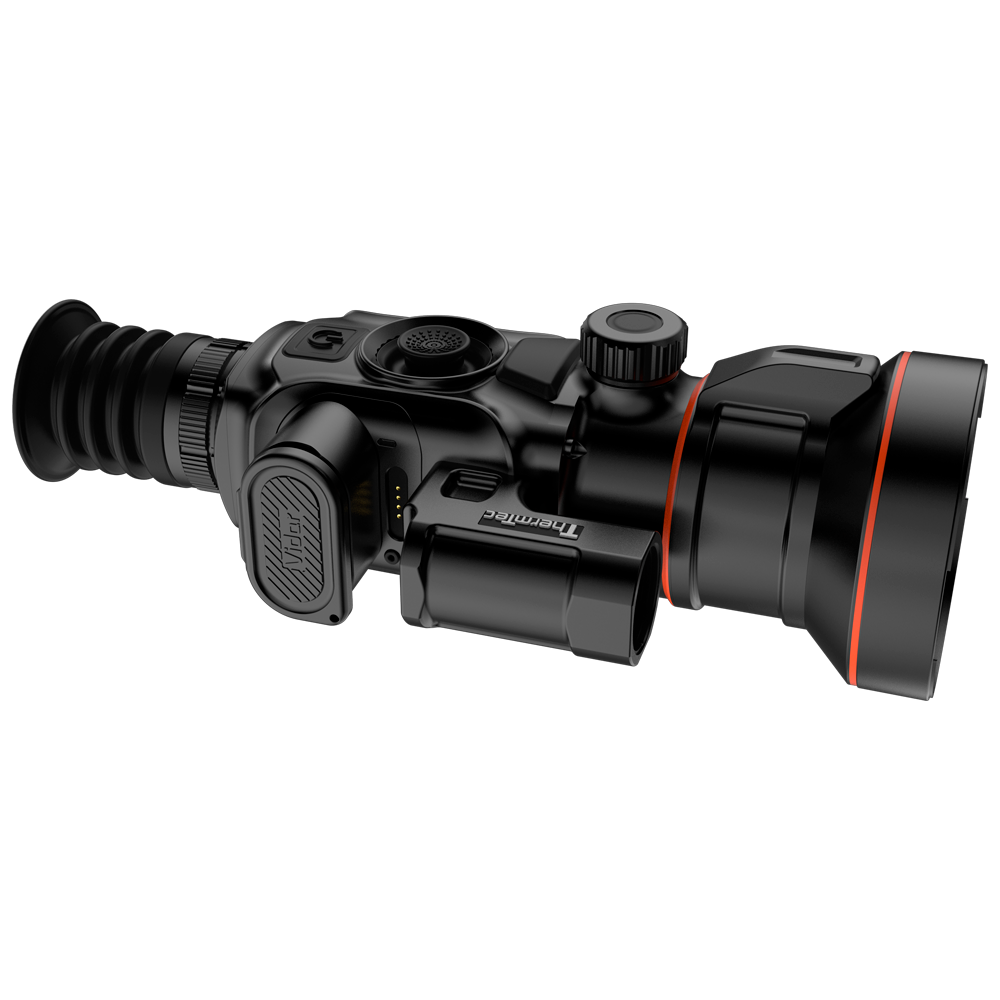

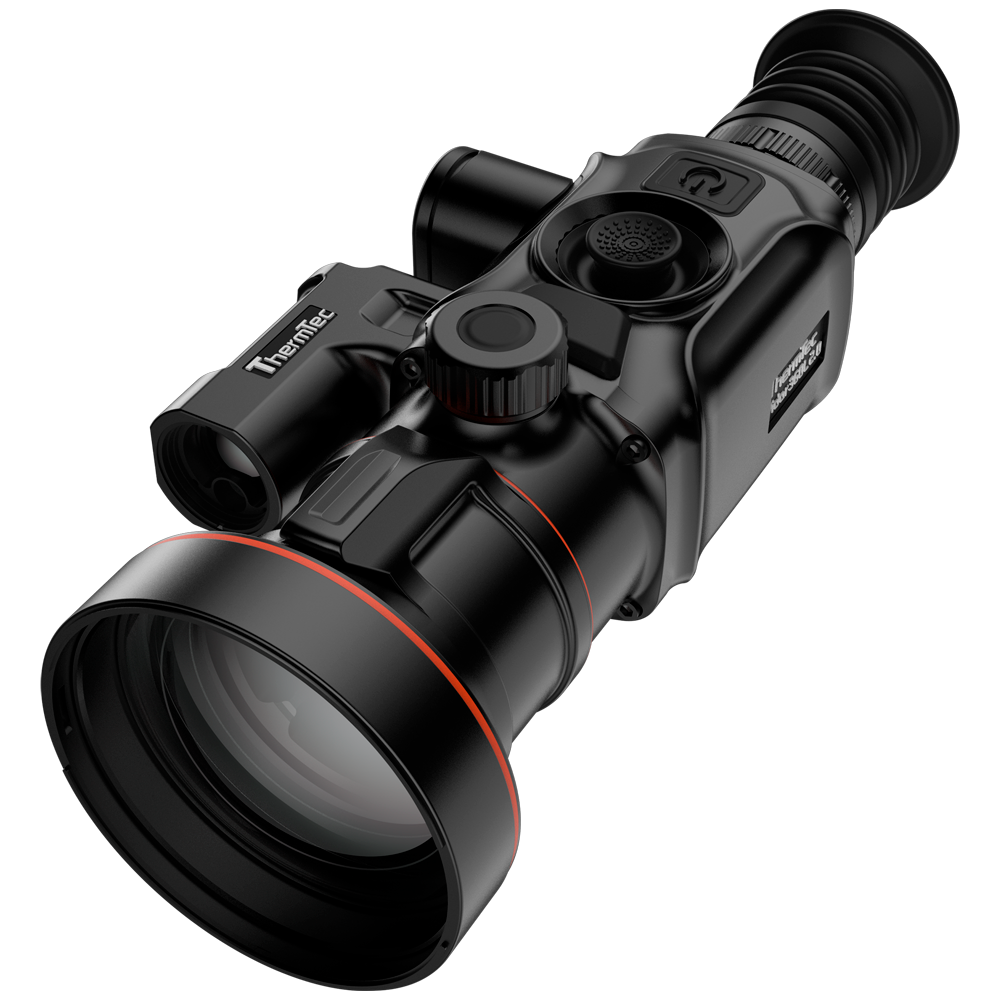

VIDAR360-LRF-2.0 THERMTEC
3.380,00 €
The Vidar 360 LRF is a high-performance thermal imaging device designed for those seeking versatility, precision and reliability in hunting, surveillance, wildlife monitoring or outdoor night-time surveillance. It combines an effective sensor, dual-configuration optics, a laser rangefinder (LRF) and modern features in a compact and robust design.
Description
Specifications
| Brand | ThermTec |
| Sensor type | VOx microbolometer uncooled |
| Resolution | 384×288 pixels |
| Pixel size | 12µm |
| Laser distance meter | LRF Laser Range Finder 1200m |
| NETD | ≤20mK@300K |
| Spectral range | 8～14μm |
| Lens | 20/60mm (F#1.0, manual focus) |
| Shutter technology | Shutterless (Shutterless military technology) |
| Increases | 1,8/5,5X |
| Viewing angle | 13.1° x 9.8° / 4.4° x 3.3° / 13.1° x 9.8° / 4.4° x 3.3° |
| Digital zoom | 1x～4x continuous |
| Colour palettes | 6 |
| Display type | AMOLED 0.39″, resolution 1024×768 pixels, 3 picture tones |
| Dioptric adjustment | -5～+5 |
| Eye distance | 45mm |
| Maximum recoil force | 6000J |
| Mounting bracket | Picatinny rail |
| Zeroing | Automatic / Manual |
| Video and image playback | YES |
| Audio recording on the shot | YES |
| Reticle | 7 (Colours: black, white, red and blue) |
| Internal memory | 64GB |
| Distance estimation | AI (based on deep learning) |
| Image on Image | Reduced-size image superimposed on the main image, zooming out the central view of the viewfinder |
| Battery type | Replaceable battery, 2×18650 Li |
| Battery life | Continuous operating time 11h |
| Connections | Magnetic USB for connection to PC for downloading photos and videos |
| Communication | Hotspot connection with app |
| Operating temperature | -20℃～+55℃ |
| Protection index | IP67, drop resistance from 1 metre |
| Weight | 8878g |
| Dimensions | 233 (W) x 111 (D) x 75 (H) mm |
Content
- ThermTec thermal visor
- Magnetic USB data cable
- 18650 BATT Lithium 4x battery
- BATT-LI-CHARGER 18650 battery charger
- Picatinny rail
- Rubber bellows eyepiece
- Large and small Allen spanners
- Mounting screw 3X
- Cleaning cloth
