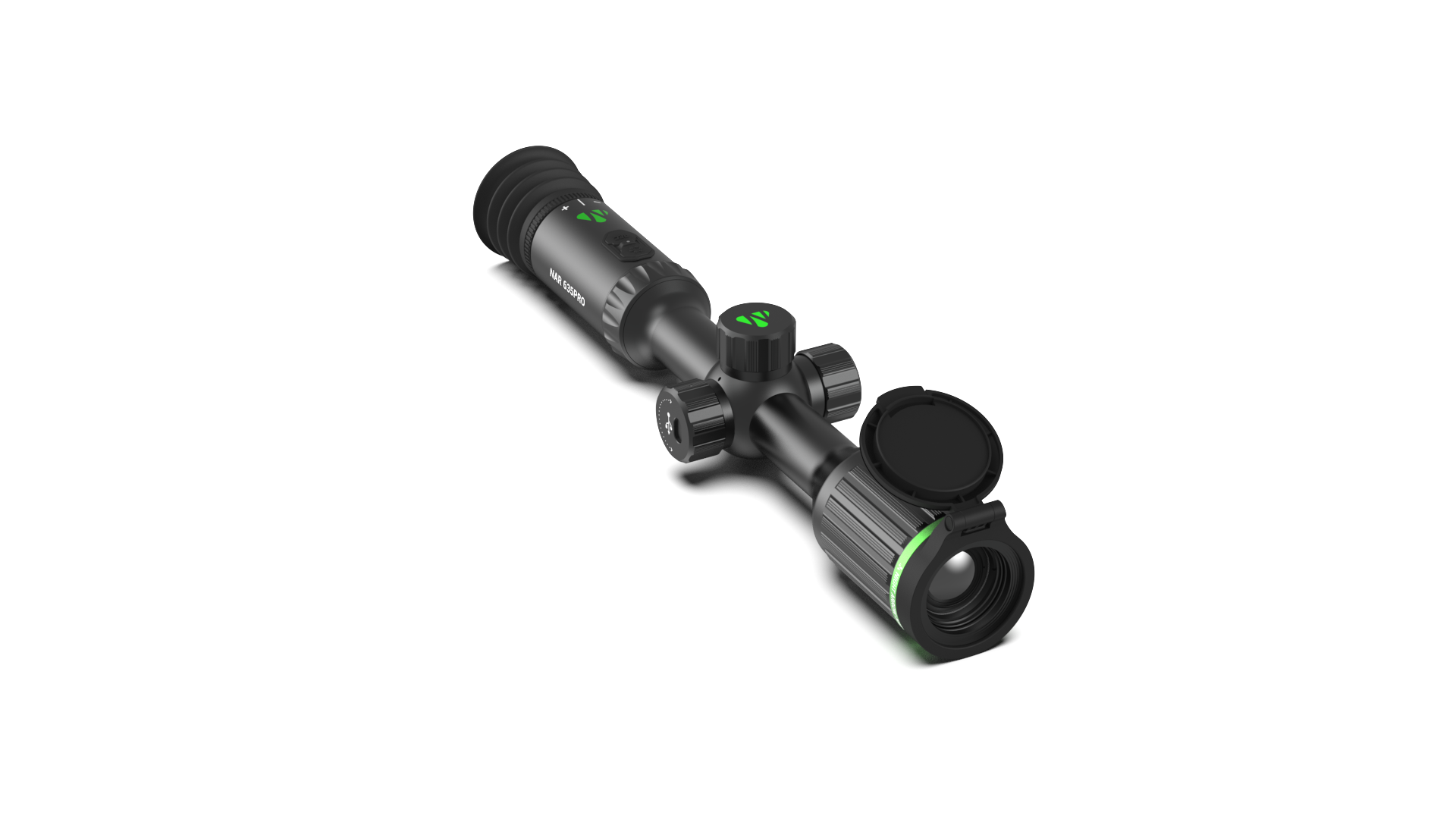

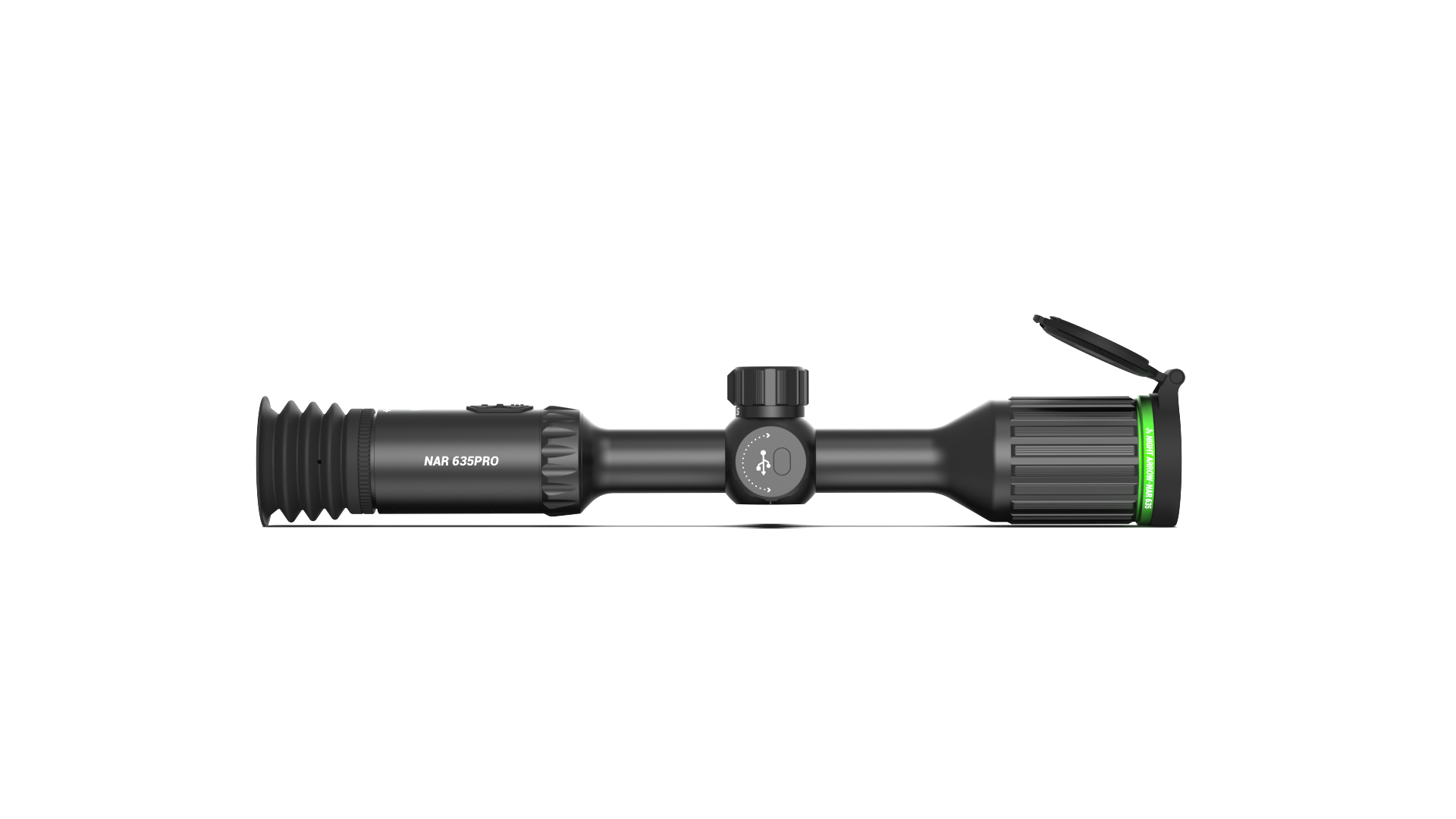

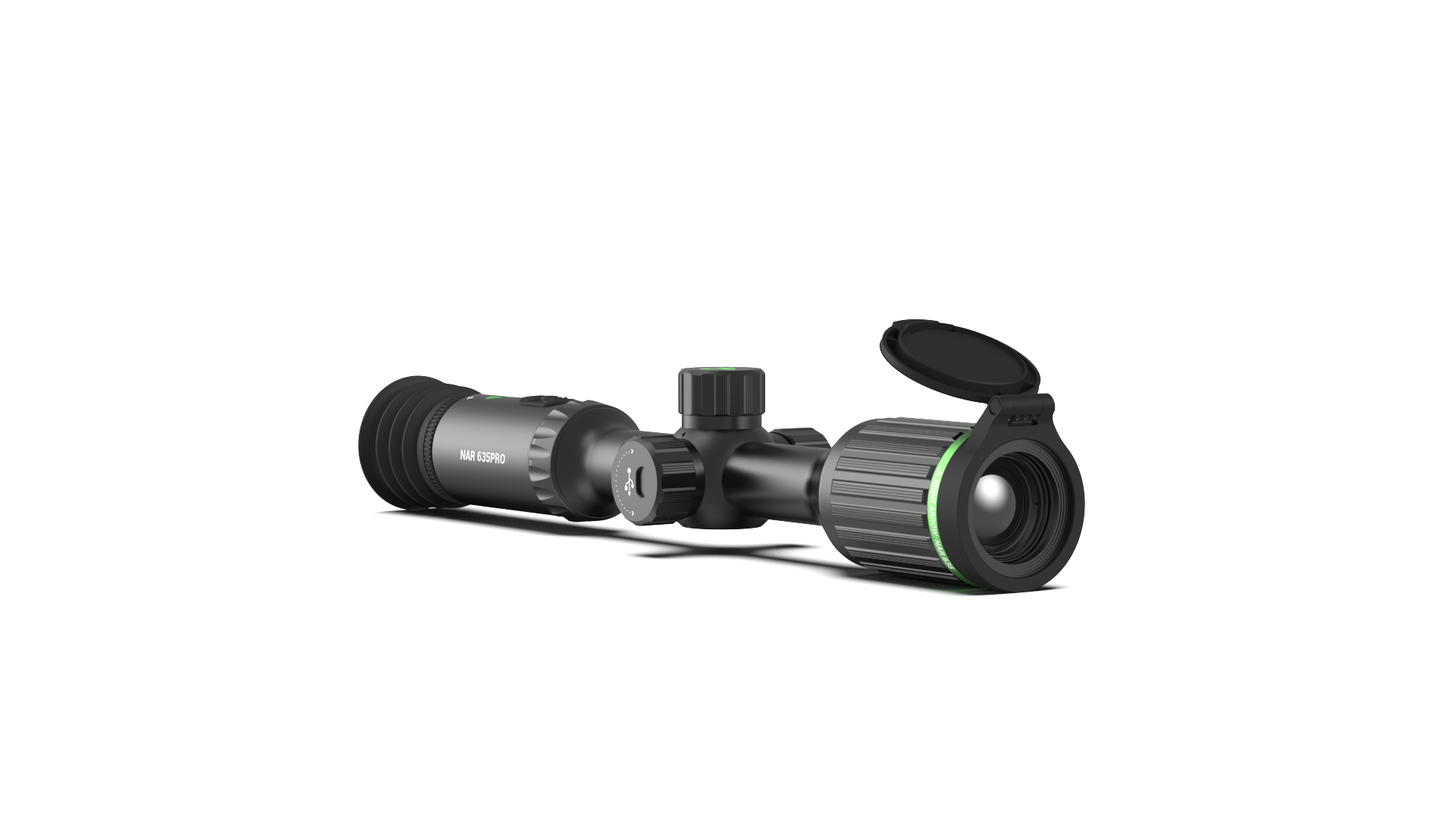

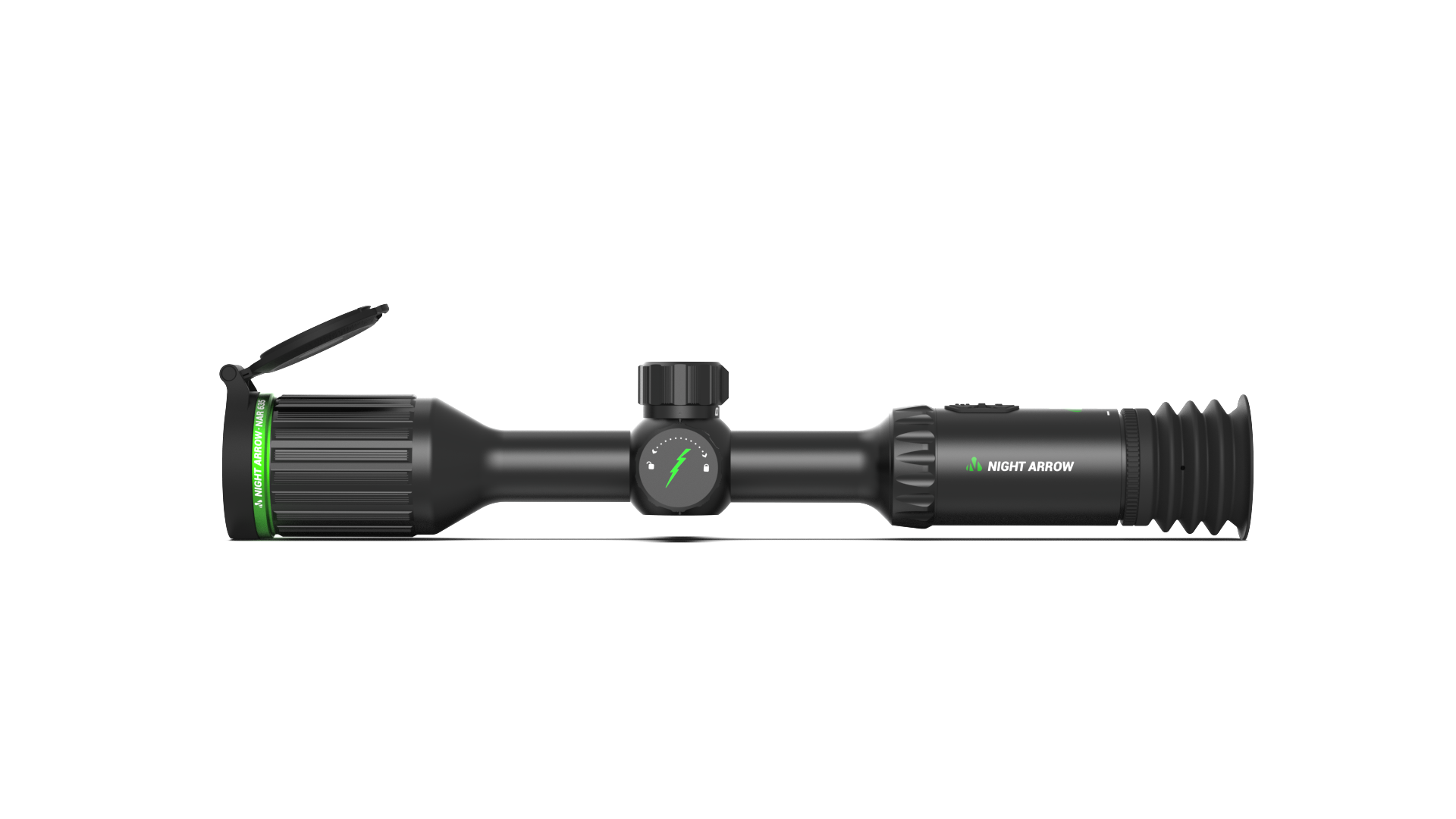

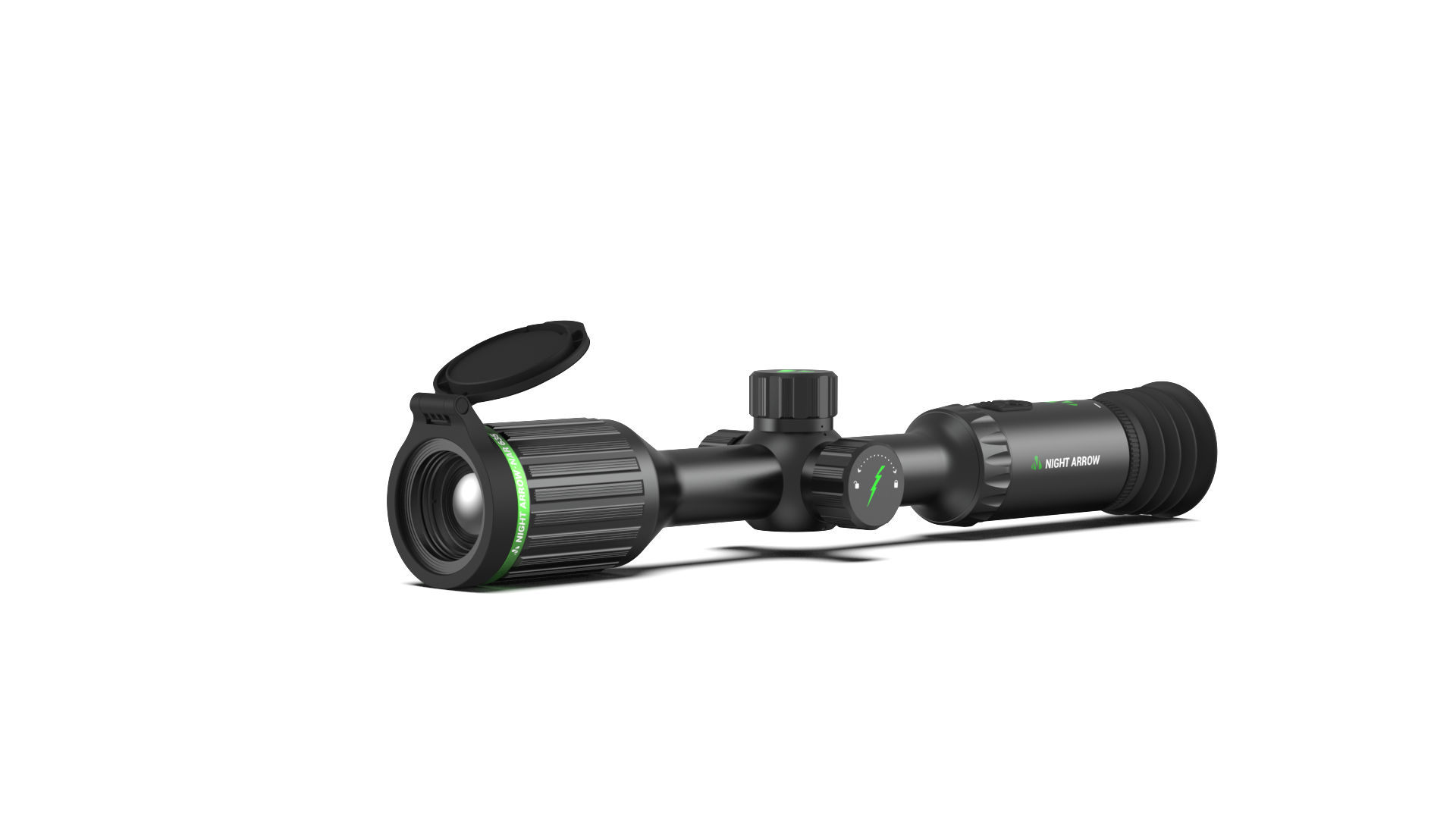

CONOTECH NIGHT ARROW MAX 635 thermal visor

This device has become a market reference.

The thermal visor  NIGHT ARROW MAX 635 from CONOTECH delivers sharp, high-contrast images.

It uses a 12 μm thermal imaging sensor with less than 15 mk NETD, and supports an external removable battery to increase battery life to over 12 hours. It also supports fast charging in 3 hours.

The NIGHT ARROW MAX 635 is ideal for those looking for precision and quality in their thermal scans.

- 12 hours of operating time.
- 3-hour fast charging support.
- Classic swivel castor.
- User-friendly controls.

The popularity of the NIGHT ARROW MAX 635 from CONOTECH is due to its advanced features.

- Uncooled Vox type detector
- Resolution 640×512
- Frame rate 50 Hz
- Pixel12μm
- Spectral range 8-14 μm
- RED Less than 15mk

- Lens: 35mm/F1.0
- Magnification 1.9x
- FOV (HxV), degrees / m@100m 22 x 18
- Close-up range3m
- Diopter adjustment±5D
- Eye relief 55mm

- Detection distance (1,7 m) 2480 m
- Reconnaissance distance (1.7 m) 830 m
- Identification distance (1,7 m) 420 m

- Zoom 1x/2x/4x/8x
- Filters: 6 optional
- Start time Less than 5 seconds
- Image EnhancementDDE
- Contrast and brightnessAGC
- Online update Yes

- OLED type display
- Resolution 1024×768
- External WIFI video
- Storage: 32G
- Power supply: Battery 2×18650 (built-in battery) + 1×18500 (external battery)
- External power supply: 5V-2A, 9V-2A (USB Type-C)
- Operating time (at t=22°C), h 12h

- Weight without battery: 900g
- Size: 72x89x375mm

- IP67 degree of protection
- Operating temperature -20 ℃ / 50 ℃
- Storage temperature -40 ℃ / 60 ℃
- Shock resistance 1200 g/m
