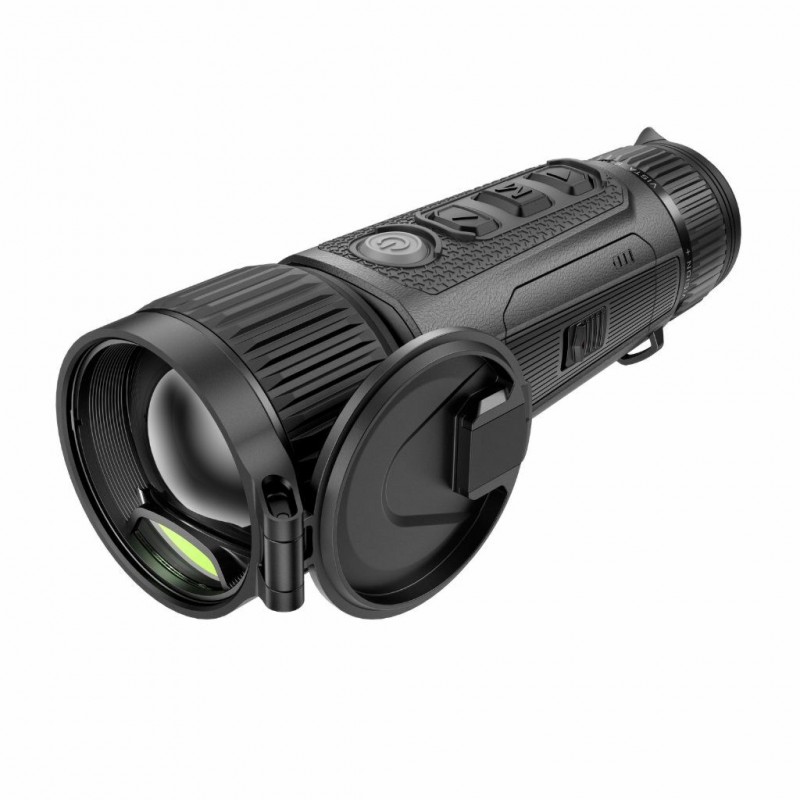

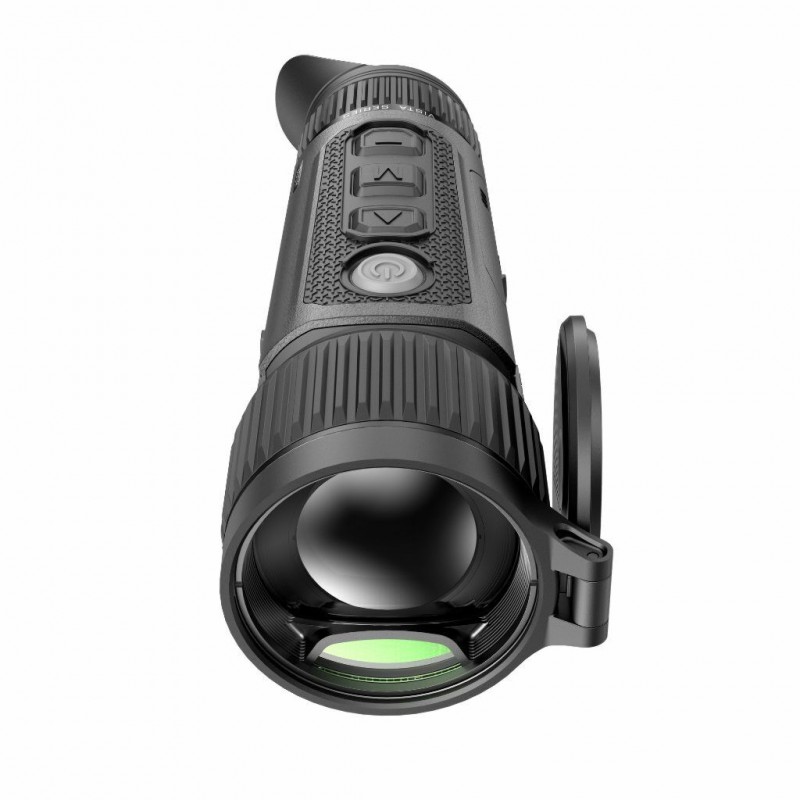

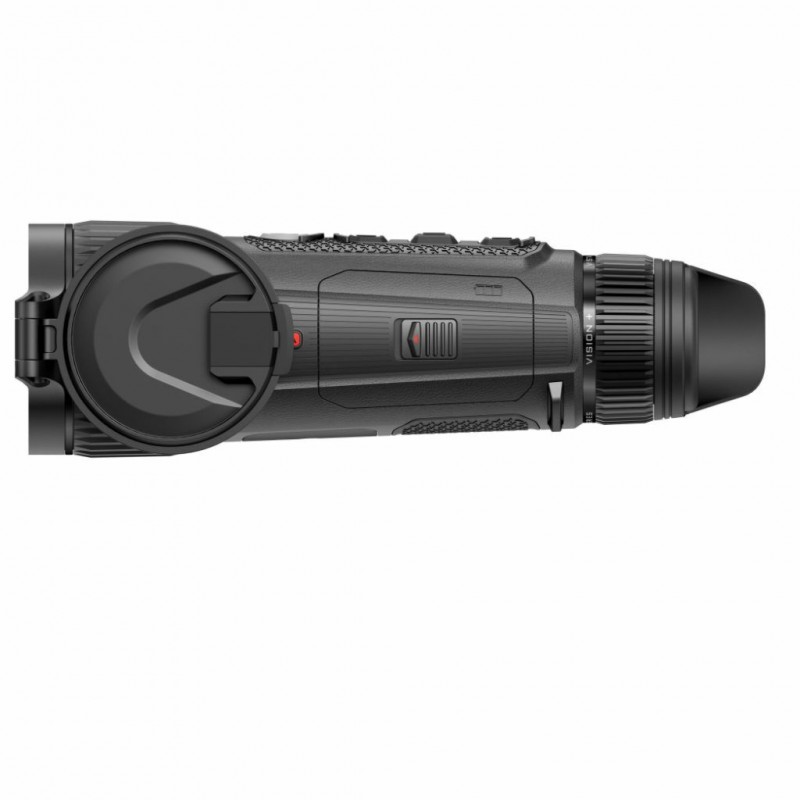

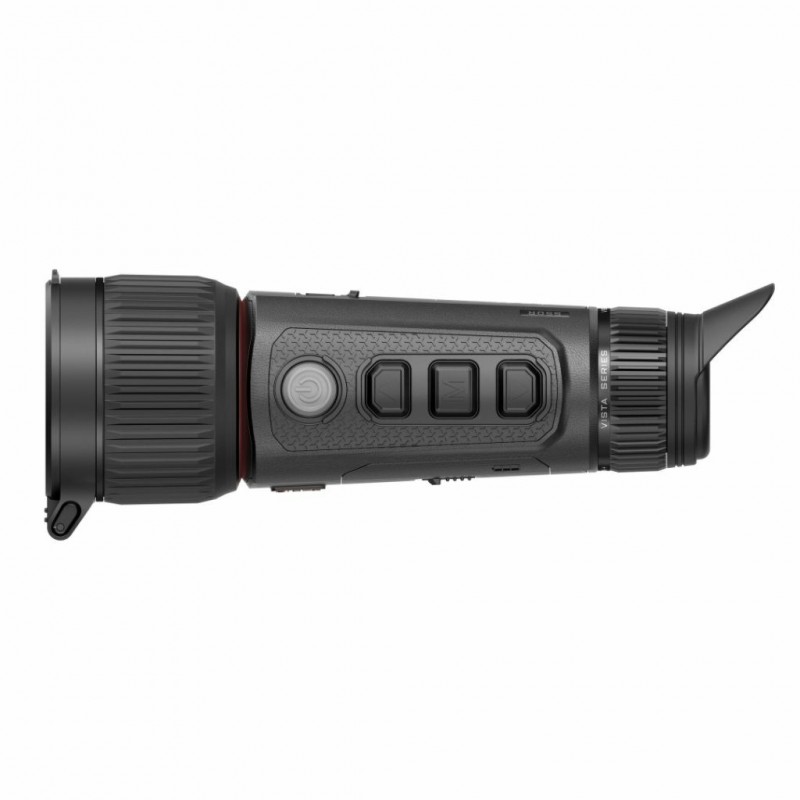

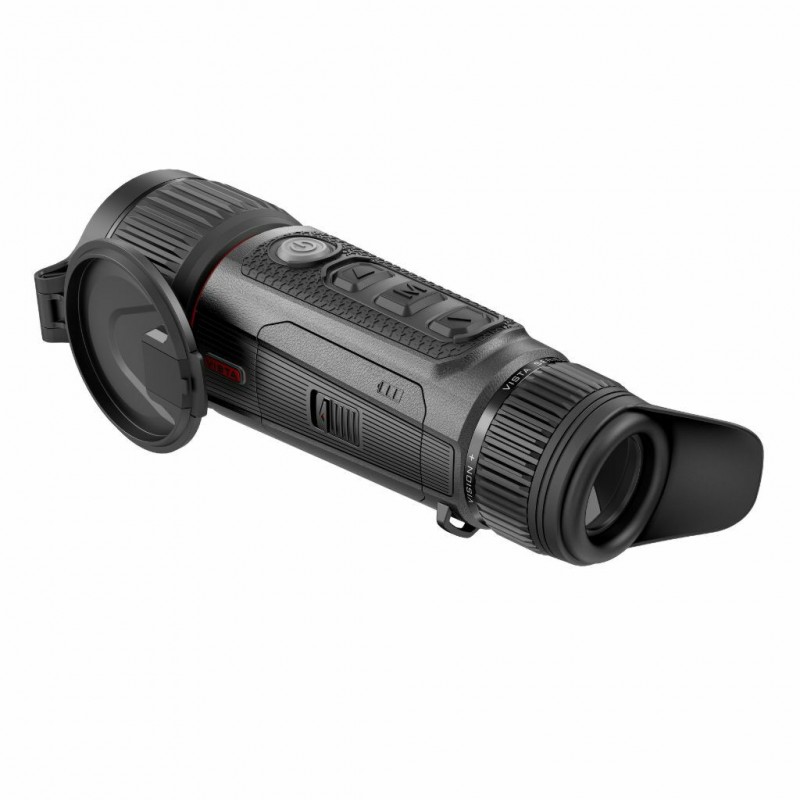

Thermal monocular VISTA VS50R NOCPIX

Thermal Monocular VISTA VS50R Nocpix.

1280×1024 sensor, 2K AMOLED display and built-in rangefinder for superior performance.

Perfect for the most demanding users: it offers precision detection and measurement in an ergonomic and robust format.

•  Ultra-high resolution thermal sensor:
  VOx sensor of 1280 × 1024 px12 µm pixel and thermal sensitivity NETD ≤ 15 mKThis ensures high-contrast images even at the smallest temperature differences.

•  2560×2560 px 2K circular AMOLED display:
  Immersive viewing with excellent brightness and sharpness, and Vision+ design maximises the field of view (8 mm exit pupil).

•  50 mm F/0.9 lens:
  Higher thermal radiation capture (20 % superior to F/1.0 lenses), ideal for dark or low visibility environments.

•  Zoom from 2× optical to ~40× digital:
  Allows accurate observation and detailing of targets even at great distances.

•  Integrated laser range finder (LRF):
  Measures up to 1 200 m (≈1 312 yd) with high accuracy, ideal for distance calculations without the need for additional devices.

•  7 colour palettes:
  Including pure red and green monochrome modes, among others, with settings designed to minimise eyestrain.

•  Built-in recording with Wi-Fi connectivity:
  Internal storage of 64 GB for photos, videos and audio, with remote control via mobile app.

•  IBP-7 rechargeable battery with USB-C charging:
  Autonomy of up to 5.5 hourswith the option of external charging and quick change in the field.

•  IP67-certified rugged construction:
  Water, dust and shock resistant, ideal for intensive outdoor use. Approx. weight: 650 g.

Advanced features:

• Thermal sensor: 1280×1024 and 12 μm

• Net, mK: ≤15

• Frame rate, Hz: 60

• Lens objective, mm: 50F0.9

• Field of vision (H×V),°/m at 100 m: 17.5 × 14.0/31 × 25

• Magnification,×: 2~40

• Sensing range, m (target size: 1,7 m × 0,5 m, P(n) = 99%): 2600

• Outlet relief, mm: 25

• Exit pupil diameter, mm: 8

• Diopter,D: -4~+6

• Type: AMOLED

• Resolution: 2560 × 2560

• Battery type: Replaceable lithium-ion battery pack IBP-7/4400 mAh

• Maximum operating time (t=22℃)h: 4.5

• Laser safety class: Class 1

• Maximum rangefinder distance, m: 1200

• Memory capacity, GB: 64

• IP rating: IP67

• Operating temperature, ℃: -20 ~ +50

• Weight,g (with battery): 690

• Dimension, mm: 201×70×82

With a ultra-HD temperature sensorwith a 2K AMOLED display, integrated laser rangefinder and long-range zoom, the VISTA VS50R is the ultimate tool for professional users who need maximum accuracy, reliability and autonomy. Ideal for activities such as hunting, surveillance, security or rescue in demanding environments.

GUARANTEE

NOCPIX offers a ten-year warranty on the sensor, two years on the battery and three years on the instrument and labour. The warranty does not cover loss or damage caused by abuse, misuse, accident, neglect or disassembly.
